Linear 84R / 184 R

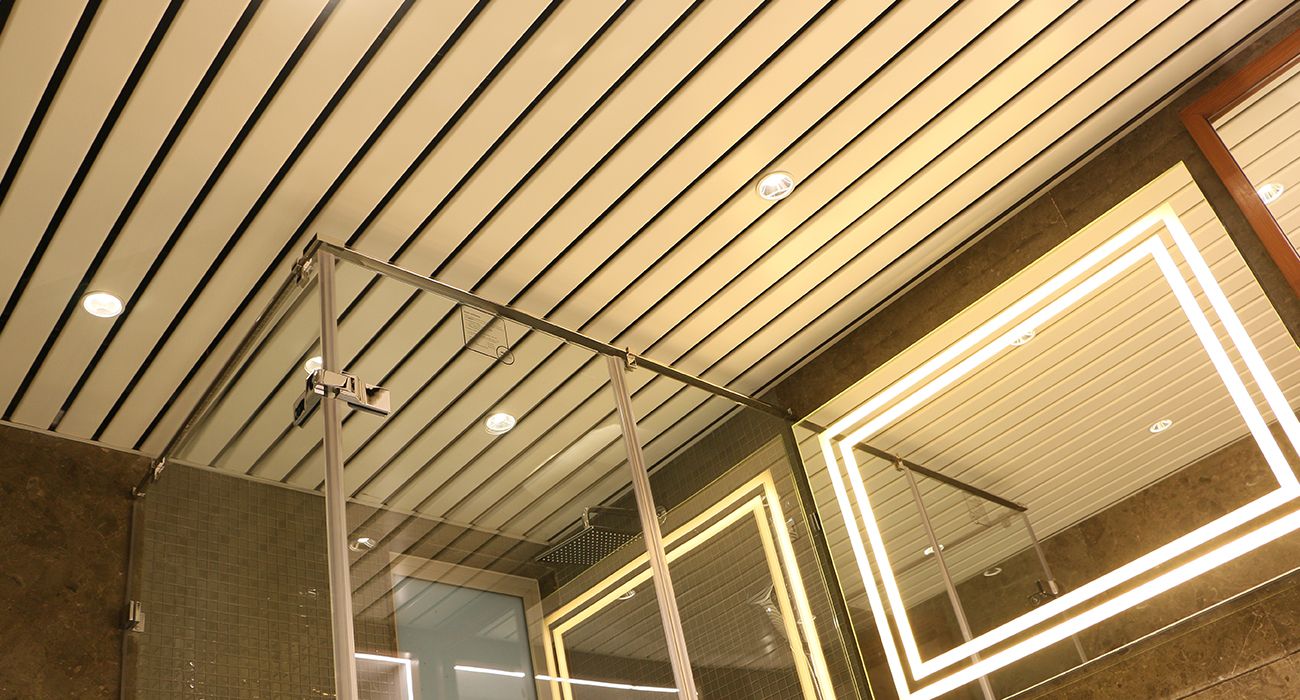

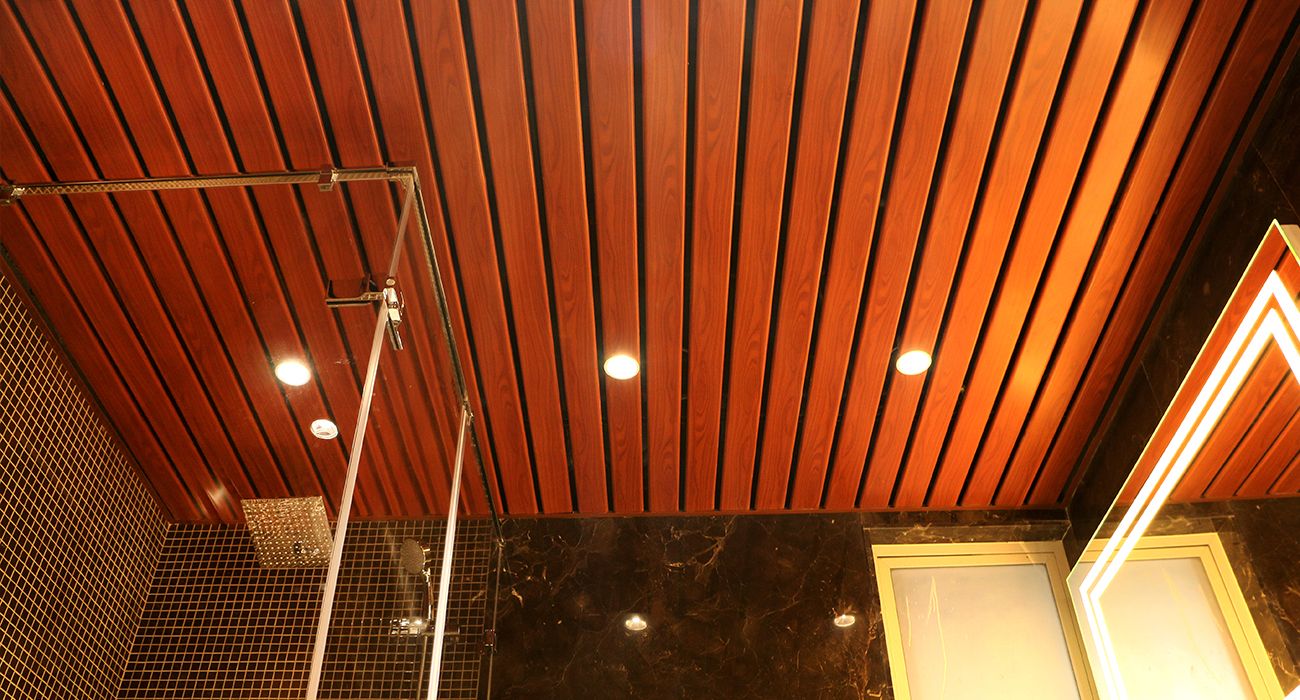

Linear 84R / 184R Ceiling is known for its attractive and fluid lines. The spaces between the panels may be left open for acoustical or air movement requirements, or closed with separate Flush Cap to give concealed look. Panels can be easily removed & replaced by hand allowing easy and full access to services.

Panels: Round edge, 84mm / 184mm wide, 15mm deep, length up to 5 mtr.

Material: Galvanized Steel 0.5mm / 0.45mm, Aluminum 0.65mm / 0.5mm - TCT.

Flush Cap / Recess Cap: Aluminum / GS 0.5mm to be inserted in 16mm gap between two 84R / 184R panels.

Carrier: Carrier shall be 20 mm wide and 39 mm deep of 0.5mm Galvanized Steel stove enameled black to hold Panel in module of 100/200 mm.

Paint finish: 50-55 microns thick powder coating on exposed surface or 25 microns polyester coil coated over primer on visible surface with primer coat on rear side.
